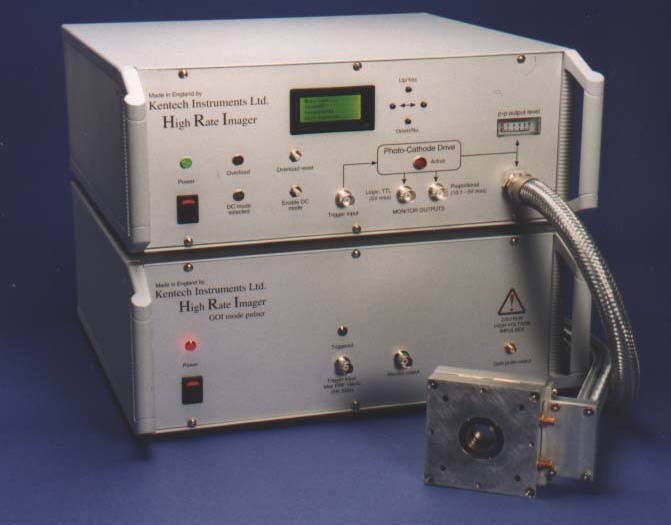

We have recently combined the technologies of the High Rate Imager and Gated optical Imager into a single unit. Now for a modest extra cost the full time resolution of the GOI (less than 80ps) and the High repetition rate of the HRI are avalaible in a single unit. Sadly we re not able to offer the high repetition rate at 80ps yet. The unit is simply an amalgamation of the two existing units. For test data see the individual pages on the HRI and GOI.
