CPS1/N
1kV/div 200ps/div Picture of unit

CPS1S/2ns/N
1kV/div 2ns/div

CPS1S/1ns/N
1kV/div 1ns/div

CPS1S/200ps/N
1kV/div 2ns/div

CPS1S/MC/4ns
400V/div 5ns/div

CPS3
2k0V/div 1ns/div

CPS3
2k0V/div 100ps/div

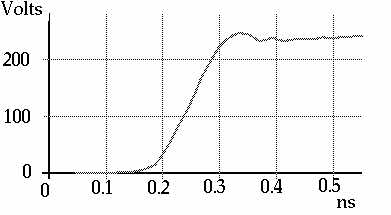

APG
100V/div 500ps/div

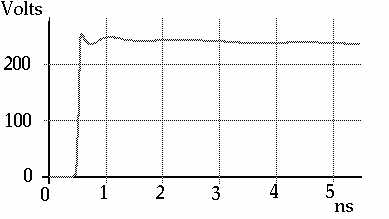

ASG
100V/div 100ps/div

ASG
100V/div 1ns/div

HMP1/N
2kV/div 500ps/div

HMP1
20ps/div showing jitter

HMPS/100ps/N
1kV/div 100ps/div

HMPS pulsers have been superseeded by HMP1
the waveforms are similar

HMPS/800ps/N
1kV/div 1ns/div

HMPS/1.2ns/N
1kV/div 1ns/div

SPSV
500V/div 2ns/div
showing 5 pulse lengths

PBG/S/100ps/N
1kV/div 50ps/div

PBG5/P8kV/div 200ps/div

Picture of Unit

Picture of unit
