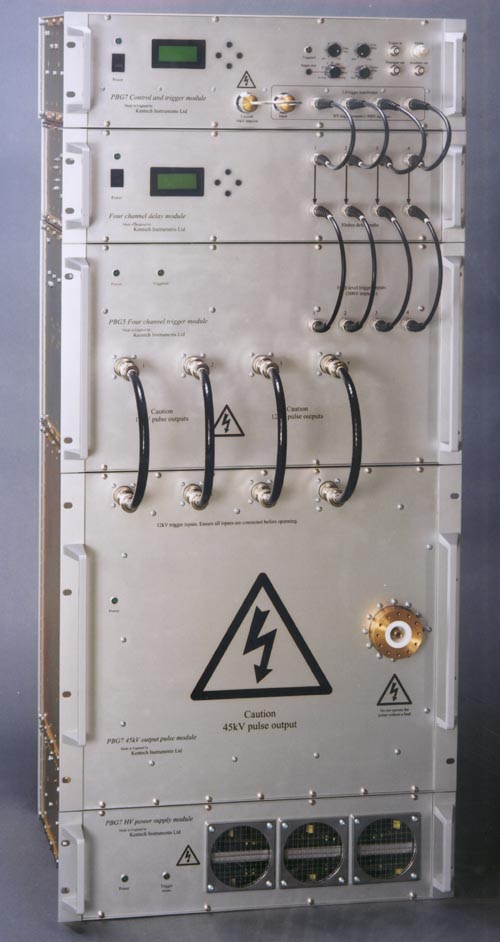

PBG7.
Click here for hi-res image

This pulser combines many switch channels to generate a voltage of 47kV into a single 50Ω output at 500Hz, with 150ps risetime.

The unit uses a PBG5 with 4 outputs as the trigger source, delivering 4 x 12kV trigger pulses.

The pulse shape is a fast rise slow fall unformed pulse. It is suitable for ultrawideband radar.

Manual is here.
